Cover And Cushion, Removing And Installing, Multi-Contour Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Multi-contour seat. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Remove the rear side airbag. Refer to REAR SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, MARKET-SPECIFIC .

-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Remove the rear headrest guides. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Remove rear seat backrest blower fan. Refer to REAR SEAT BACKREST FAN, REMOVING AND INSTALLING .

-- Free up and disconnect the harness connectors for the seat heater.

-- Before disconnecting, mark the pneumatic line assignments to the connections at the valve block using a waterproof permanent marker.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the pneumatic lines for all of the massage mat air cushions.

-- To do this, press the release ring -2- in the direction of the valve block -1- -arrow A- and at the same time pull out the pneumatic line -3- in direction of -arrow B-.

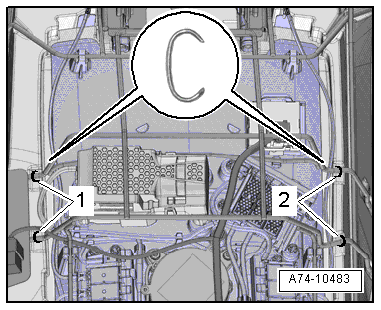

-- Cut through the cushion clips -1 and 2- with pliers.

Courtesy of AUDI OF AMERICA, LLC

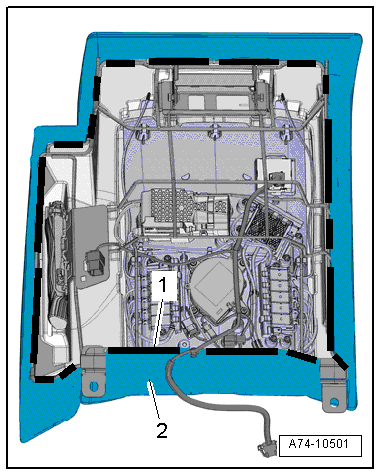

-- Detach the molding -1- for the backrest cover -2- surrounding the backrest frame.

Courtesy of AUDI OF AMERICA, LLC

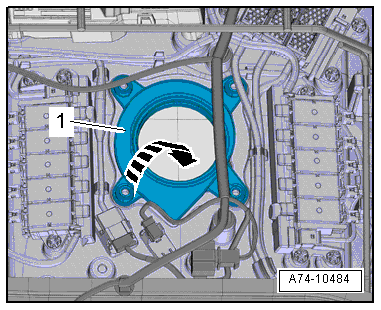

-- Detach the rubber boot -1- for the air guide mat from the lumbar support module carrier and remove it towards the front -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest cover and backrest cushion from the backrest frame.
