Cover And Cushion, Removing And Installing, Fixed Rear Seat Backrest: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, FIXED, REMOVING AND INSTALLING .

-- Remove the center armrest, bracket and hinges. Refer to CENTER ARMREST BRACKET/HINGE, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .

-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .

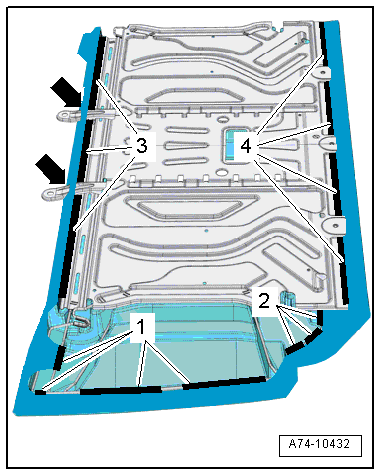

-- Detach protective strip -1 and 2- by moving it sideways on the backrest frame.

-- Repeat the process on the opposite side of the rear seat backrest.

-- Pry the top part of the clamping strip -4- from the backrest frame.

-- Unclip the lower part of the retaining channel -3- from the backrest frame.

-- Detach the lower part of the backrest frame cover from the backrest frame -arrows-.

-- Detach the protective strip -2- for the backrest cover on the backrest cushion opening for the rear center armrest from the backrest frame.

Courtesy of AUDI OF AMERICA, LLC

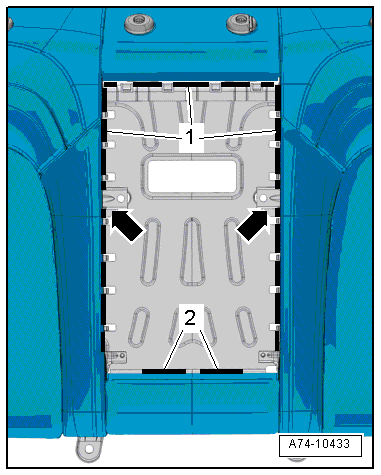

-- Detach the protective strip -1- for the backrest cover in the backrest cushion opening for the rear center armrest from the backrest hooks.

-- Detach the backrest cover from their mounts -arrows- for the rear center armrest.

-- Remove the rear headrest guides. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, STANDARD/SPORT SEAT/SUPER SPORT SEAT .

-- Remove the backrest cover and backrest cushion from the backrest frame.
