Cover And Cushion, Removing And Installing, Fixed Rear Seat Backrest: Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:
-- Attach the clamping profile to the lower part of the backrest frame, then pull the backrest cover tightly upward.

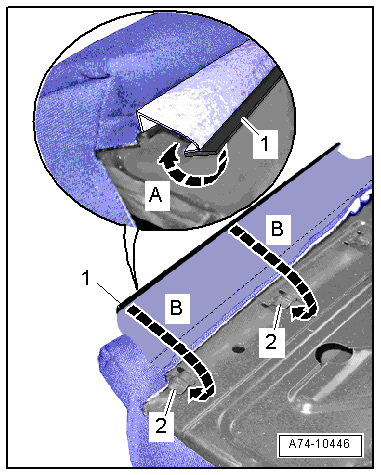

-- Flip the protective strip -1- over 180° toward the inside -arrow A-.
-- Attach the protective strip onto the metal tabs -2- on the seatback frame -B arrows-.
