Cover And Cushion, Removing And Installing, Divided Rear Seat Backrest: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

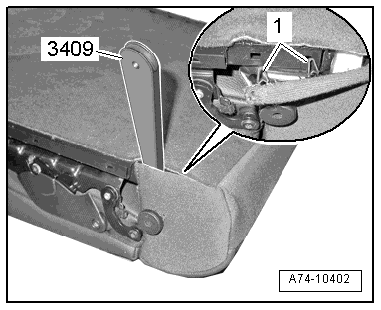

GWWA74-10402Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear seat backrest. Refer to DIVIDED REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the locking mechanism trim. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .

-- Unclip the backrest cover clips -1- near the inner mounting pins from the backrest frame using the :3409  .
