Rear Center Armrest Cushion, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear armrest. Refer to CENTER ARMREST ARM CUSHION, REMOVING AND INSTALLING, MARKET-SPECIFIC .
-- Remove the trim from the rear center armrest. Refer to CENTER ARMREST TRIM, REMOVING AND INSTALLING, MARKET-SPECIFIC .

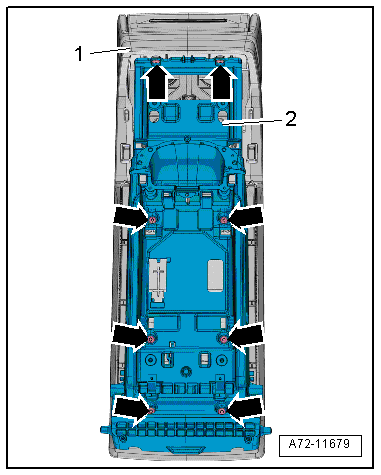

-- Remove the bolts -arrows-.
-- Remove the cushion -1- from the lower section of the armrest -2-.
-- Disconnect the electrical harness connector for ambient lighting.
