Backrest Heating Element, Removing And Installing, Multi-Contour Seat: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the backrest cover and the rear seat backrest cushion. Refer to COVER AND CUSHION, SEPARATING .

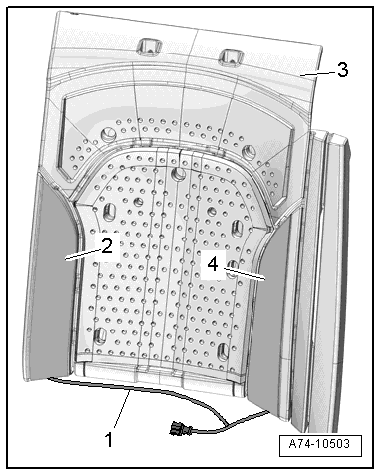

-- Disconnect the electric wire -1- directly from the old heating element -2 and 4-.
NOTE:
The old heating elements remain on the seat cushion -3- and will be covered over by the new heating element.
