Seat Pan Cover And Cushion, Separating, Multi-Contour Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

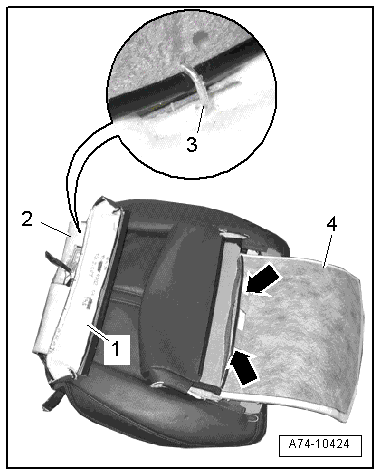

GWWA74-10424Courtesy of AUDI OF AMERICA, LLC

-- Remove seat cover and seat cushion. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Remove the seat cover -1- from the seat padding -2- and cut the upholstery clips -3- using pliers.

-- Cut the wires -arrows- between the heating element on the leg support -4- and the seat cover.

NOTE:

The old heating element remains on the leg support and a new heating element (component of the seat cover) is bonded over them.
