Seat Pan Seat Bolster Cushion, Removing And Installing, Multi-Contour Seat: Removing
- Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
-- Detach the molding -5- at the rear of the seat pan using the :3370 .
Ignore items -1 to 4-.
-- Detach the molding -3- from the seat frame on the sill-side.
-- Detach the molding -1 and 2- from the seat frame on the sill-side.
-- Lift the seat cover -3- on the tunnel side.
-- Disengage the tab -1- on the seat frame on the tunnel side.
-- Detach the molding -2- from the seat pan frame on the tunnel side.

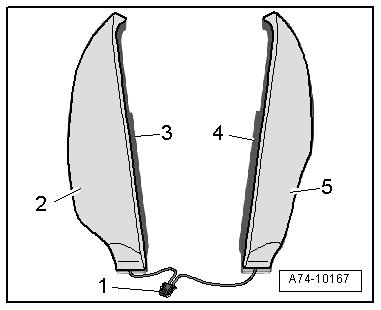

-- Disconnect the connector -1- and free up the heating element wire.
-- Remove the seat bolster cushion -3 and 4-.
The seat bolster cushion -3 and 4 - is only available together with the heating element -2 and 5.-
