Seat Pan Cover And Cushion, Removing And Installing, Multi-Contour Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

Front Passenger Seat - Country-Specific with Passenger Occupant Detection System for Front Passenger Airbag Deactivating

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Never disconnect the connector -4- from the Passenger Occupant Detection System Control Module -J706-.

-- Disconnect the connector -3- from the control module.

-- Remove the bolt -1-.

-- Disengage the control module -2- from the bracket -arrow- and free up the control module and wire.

Continuation for Driver Seat and Front Passenger Seat

Courtesy of AUDI OF AMERICA, LLC

-- Remove front trim bracket, compressor and Multi-contour seat control module. Refer to FRONT SEAT TRIM BRACKET/COMPRESSOR/CONTROL MODULE, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

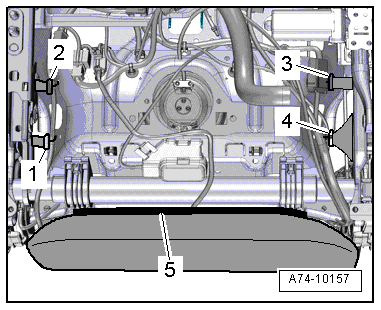

-- Detach rubber strap -2- and molding -1- at the front of the seat pan.

-- Detach tab hooks -1 to 4- at the bottom of the seat pan.

Courtesy of AUDI OF AMERICA, LLC

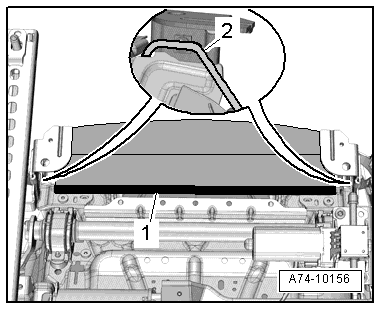

-- Detach the molding -5- at the rear of the seat pan using the :3370 .

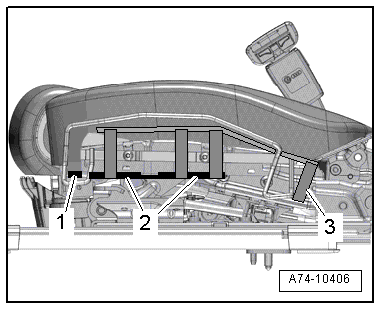

-- Detach the molding -3- from the seat frame on the sill-side.

Courtesy of AUDI OF AMERICA, LLC

-- Detach the molding -1 and 2- from the seat frame on the sill-side.

-- Free up the electric wire for the heating element and remove the sill-side seat bolster padding.

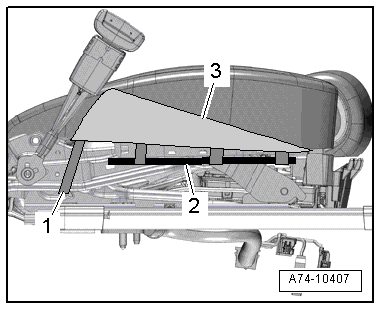

-- Lift the seat cover -3- on the tunnel side.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the tab -1- on the seat frame on the tunnel side.

-- Detach the molding -2- from the seat pan frame on the tunnel side.

-- Free up the heating element connector and remove the tunnel-side seat bolster padding.

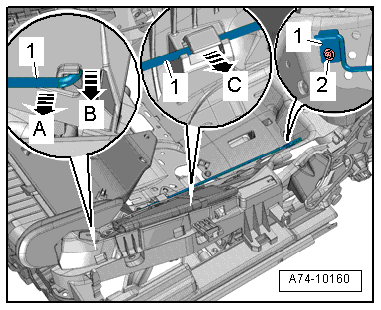

-- Remove the expanding rivet -2- from the padding wire -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the center of the padding wire from the lower seat frame -arrow C-.

-- Push the front padding wire down -arrow A- and remove from the lower seat frame -arrow B-.

-- Repeat the procedure on the other side of the vehicle.

-- Disconnect the connector on the seat cushion and free up the wires.

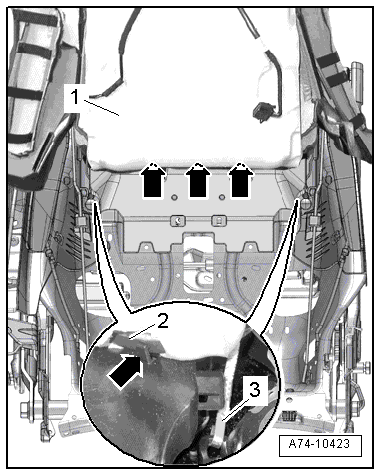

-- Lift the seat cover and rear seat cushion -1- carefully and disengage the rubber band -3- for the seat cover from the lower seat frame.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the seat cover clamping strip -2- at the seat depth adjuster cover using the :3409 -arrows-.

-- Remove the seat cover and seat cushion.
