Lower Seat Frame Cover And Cushion, Removing And Installing, Standard Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

-- Vehicles with a front passenger seat with a child seat anchor: remove the LATCH child seat anchor. Refer to FRONT LATCH CHILD SEAT ANCHOR, REMOVING AND INSTALLING .

-- Equipment level with storage compartment: remove the storage compartment. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the bracket for the sill-side trim:

For the manual standard seat. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (MANUAL) .
For the power standard seat. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (POWER) .

Front Passenger Seat - Country-Specific with Passenger Occupant Detection System for Front Passenger Airbag Deactivating:

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Never disconnect the connector -4- from the Passenger Occupant Detection System Control Module -J706-.

-- Disconnect the connector -3- from the control module.

-- Remove the bolt -1-.

-- Disengage the control module -2- from the bracket -arrow- and free up the control module and wire.

Continuation for Driver Seat and Front Passenger Seat

Courtesy of AUDI OF AMERICA, LLC

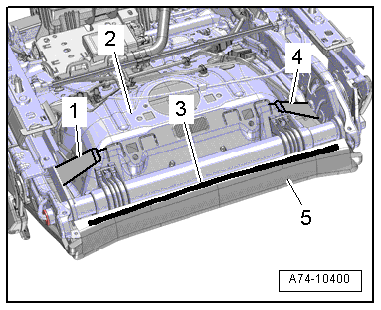

-- Disengage the hooks -1 and 4- from the lower seat frame -2-.

-- Disconnect and free up the connectors.

-- Detach the molding -3- of the seat cover -5- in the rear area using the :3370 .

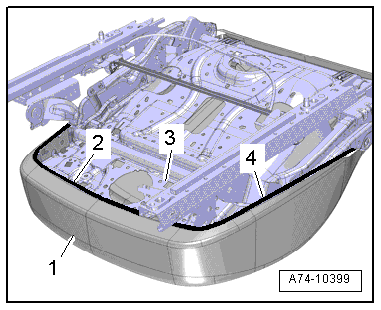

-- Detach the molding -2 and 4- of the seat cover in the front and side areas using the :3370 .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat cover -1- with the seat cushion from the lower seat frame -3-. If necessary, free up the wiring harness for the seat heating and passenger occupant detection system.
