Overview - Seat Pan Cover And Cushion, Standard Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

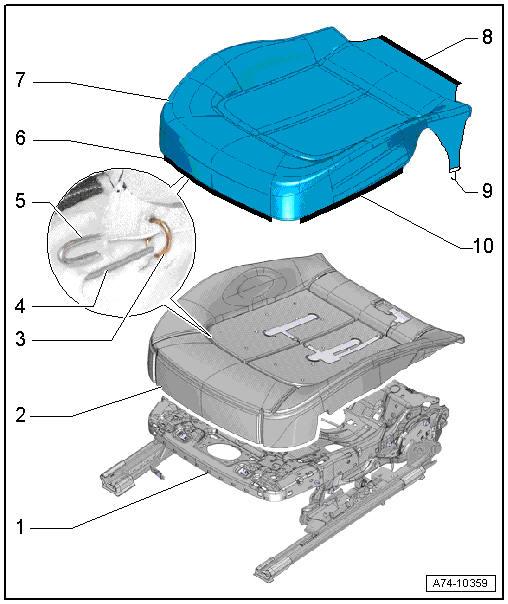

Fig 1: Seat Pan Cover And Cushion, Standard Seat Exploded View

Courtesy of AUDI OF AMERICA, LLC

Seat Pan
Seat Cushion
- Seat cover and cushion, removing and installing. Refer to LOWER SEAT FRAME COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
Cushion Clip
- For attachment of seat cover to seat cushion
- Replace
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
Wire
- Embedded in the foam of the seat cushion
- For attachment of seat cover to seat cushion
Contour Wire
- Inserted in the pocket of the seat cover
- For attachment of seat cover to seat cushion
Molding
- Sewn into seat cover
- For engaging seat cover on seat pan upper frame
- Make sure it fits correctly in the upper seat frame
Seat Cover
- Seat cover and cushion, removing and installing. Refer to LOWER SEAT FRAME COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
- Make sure there are no folds after installing
Molding
- Sewn into seat cover
- For engaging seat cover on seat pan upper frame
- Make sure it fits correctly in the upper seat frame
Tab
- With hooks
- For engaging seat cover on seat pan upper frame
Molding
- Sewn into seat cover
- For engaging seat cover on seat pan upper frame
- Make sure it fits correctly in the upper seat frame
