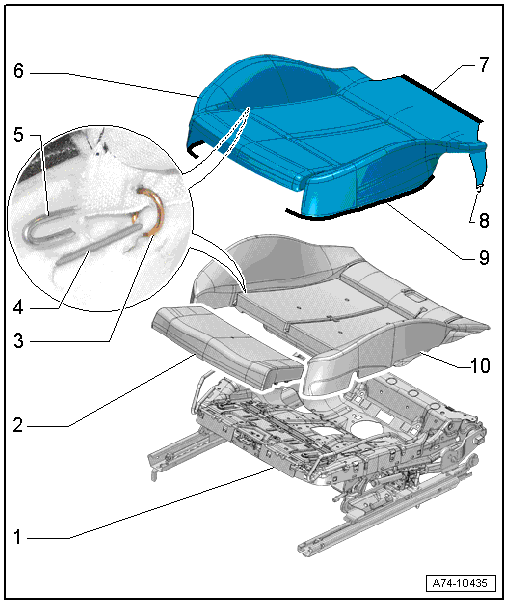

Overview - Seat Pan Cover And Cushion, Sport Seat/Super Sport Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Pan
- Seat Cushion
- For seat depth adjustment
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SPORT SEAT/SUPER-SPORT SEAT .
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
- Cushion Clip
- For attachment of seat cover to seat cushion
- Replace
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
- Wire
- Embedded in the foam of the seat cushion
- For attachment of seat cover to seat cushion
- Contour Wire
- Inserted in the pocket of the seat cover
- For attachment of seat cover to seat cushion
- Seat Cover
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SPORT SEAT/SUPER-SPORT SEAT .
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
- Make sure there are no folds after installing
- Molding
- Sewn into seat cover
- For engaging seat cover on seat pan upper frame
- Make sure it fits correctly in the upper seat frame
- Tab
- With hooks
- For engaging seat cover on seat pan upper frame
- Molding
- Sewn into seat cover
- For engaging seat cover on seat pan upper frame
- Make sure it fits correctly in the upper seat frame
- Seat Cushion
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SPORT SEAT/SUPER-SPORT SEAT .
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
