Overview - Seat Pan Cover And Cushion, Multi-Contour Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

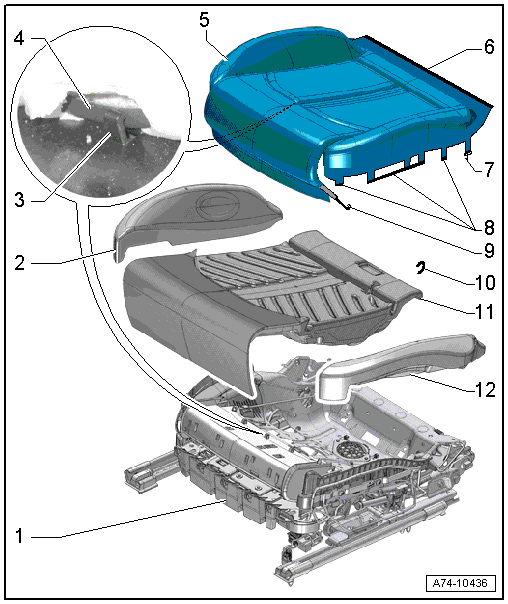

Fig 1: Seat Pan Cover And Cushion, Multi-Contour Seat Exploded View
GWWA74-10436Courtesy of AUDI OF AMERICA, LLC
  1. Seat Pan
    • With a seat depth adjuster
  2. Seat Bolster Cushion
  3. Retaining Hook
    • On the seat depth adjuster cover
    • Quantity: 4
  4. Clamping Strip
    • Sewn into seat cover
    • For attaching the seat cover and seat cushion to seat depth adjuster cover
  5. Seat Cover
  6. Molding
    • Sewn into seat cover
    • For attaching the rear seat cover to the seat pan upper frame
    • Make sure it fits correctly in the upper seat frame
  7. Tab
    • With hooks
    • Sewn into seat cover
    • For engaging seat cover on the lower seat frame
  8. Molding
    • Sewn into seat cover
    • For attaching the seat cover on the side of the upper seat frame
    • Make sure it fits correctly in the upper seat frame
  9. Rubber Strap
    • Quantity: 2
    • Inserted in the pocket of the seat cover
    • For engaging on the seat pan upper frame
  10. Cushion Clip
    • For attachment of seat cover to seat cushion
    • Replace
    • Install at the same location with Upholstery Clip Pliers :VAG1634  .
  11. Seat Cushion
  12. Seat Bolster Cushion
