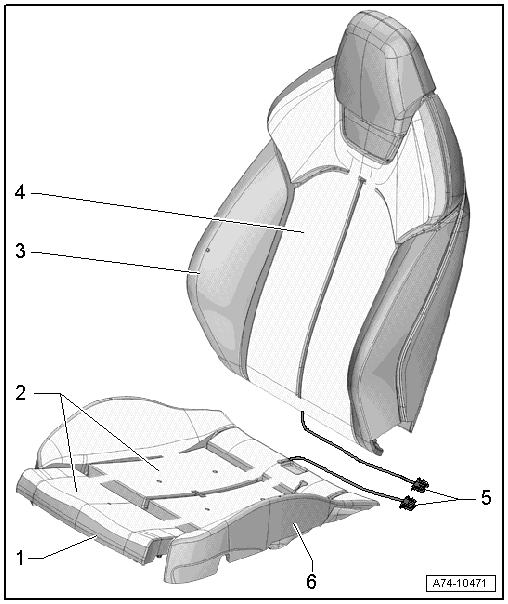

Overview - Seat Heating Element, Super Sport Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Cushion
- For seat depth adjustment
- Allocation. Refer to the Parts information.
- Driver Seat Heating Element -Z6-
- Passenger side: Front Passenger Seat Heating Element -Z8-
- Removing and installing. Refer to Driver Seat Heating Element -Z6- /Front Passenger Seat Heating Element -Z8-, REMOVING AND INSTALLING .
- Allocation. Refer to the Parts information.
- Backrest Cushion
- Allocation. Refer to the Parts information.
- Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Backrest Heating Element -Z9-
- Removing and installing. Refer to Driver Backrest Heating Element -Z7- /Front Passenger Backrest Heating Element -Z9-, REMOVING AND INSTALLING .
- Allocation. Refer to the Parts information.
- Wire
- Seat Cushion
- Allocation. Refer to the Parts information.
