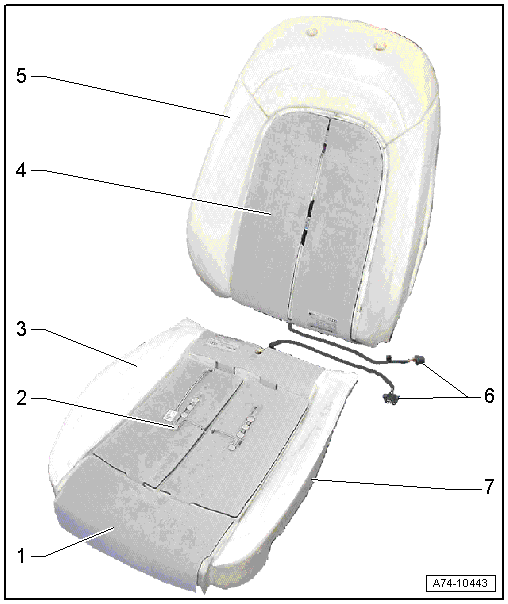

Overview - Seat Heating Element, Seat Ventilation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Seat Heating Element -Z6-
- Passenger side: Front Passenger Seat Heating Element -Z8-
- Removing and installing. Refer to Driver Seat Heating Element -Z6- /Front Passenger Seat Heating Element -Z8-, REMOVING AND INSTALLING .
- Allocation. Refer to the Parts information.
- Front Passenger Occupant Detection Sensor -G128-
- Market-specific: Passenger Occupant Detection System Pressure Sensor -G452-
- Vehicles version front passenger side only
- Removing and installing. Refer to Front Passenger Occupant Detection Sensor -G128-, REMOVING AND INSTALLING .
- Seat Bolster Heating
- Allocation. Refer to the Parts information.
- Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Backrest Heating Element -Z9-
- Removing and installing. Refer to Driver Backrest Heating Element -Z7- /Front Passenger Backrest Heating Element -Z9-, REMOVING AND INSTALLING .
- Allocation. Refer to the Parts information.
- Backrest Cushion
- Allocation. Refer to the Parts information.
- Wire
- Seat Cushion
- Allocation. Refer to the Parts information.
