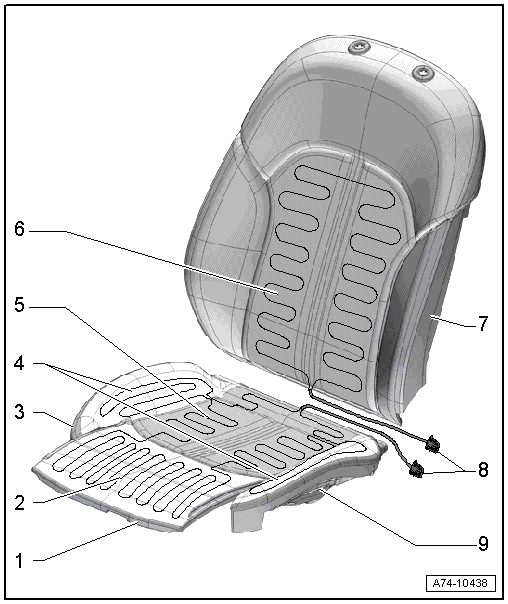

Overview - Seat Heating Element, Multi-Contour Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Cushion
- Allocation. Refer to the Parts information.
- Heating Element
- For leg rest
- Bonded with seat cushion and joined to heating element in the seat cover; if defective, replace seat cover SEAT PAN COVER AND CUSHION, SEPARATING, MULTI-CONTOUR SEAT
- Seat Bolster Cushion
- Allocation. Refer to the Parts information.
- Driver Seat Bolster Heater -Z31-
- Front passenger side: Front Passenger Seat Bolster Heater -Z33-
- The heating element is glued to the seat bolster cushion
- Removing and installing. Refer to SEAT PAN SEAT BOLSTER CUSHION, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
- Allocation. Refer to the Parts information.
- Driver Seat Heating Element -Z6-
- Passenger side: Front Passenger Seat Heating Element -Z8-
- Heating element sewn into seat cover; if faulty, replace the seat cover. Refer to SEAT PAN COVER AND CUSHION, SEPARATING, MULTI-CONTOUR SEAT .
- Allocation. Refer to the Parts information.
- Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Backrest Heating Element -Z9-
- Heating element sewn into backrest cover; if faulty, replace backrest cover. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
- Backrest Cushion
- Allocation. Refer to the Parts information.
- Wire
- Seat Bolster Cushion
- Allocation. Refer to the Parts information.
