Overview - Backrest Cover And Cushion, Multi-Contour Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

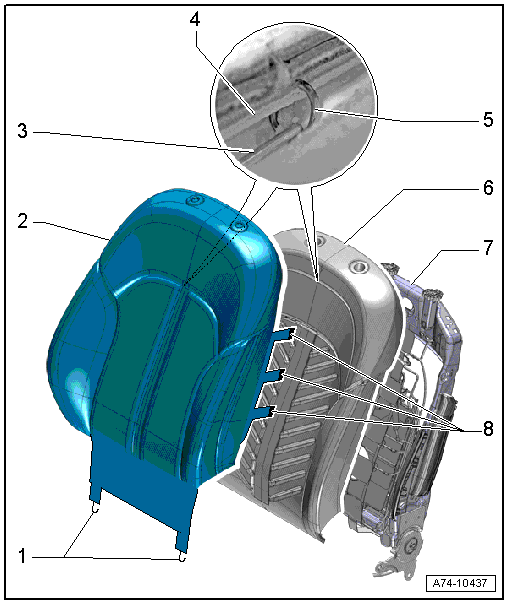

Fig 1: Backrest Cover And Cushion, Multi-Contour Seat Exploded View

Courtesy of AUDI OF AMERICA, LLC

Tab
- With hooks
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
Backrest Cover
- Backrest cover and cushion, removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Backrest cover and cushion, separating and assembling. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
- Make sure there are no folds after installing
Wire
- Embedded in the foam of the backrest cushion
- For attachment of backrest cover to backrest cushion
Contour Wire
- Pushed into the pocket of the backrest cover
- For attachment of backrest cover and backrest cushion
Cushion Clip
- For attachment of backrest cover to backrest cushion
- Replace
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
Backrest Cushion
- Backrest cover and cushion, removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Backrest cover and cushion, separating and assembling. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
Backrest Frame
Molding
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
- Make sure it fits correctly inside the backrest frame
