Driver Seat Heating Element -Z6- /Front Passenger Seat Heating Element -Z8-, REMOVING AND INSTALLING: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

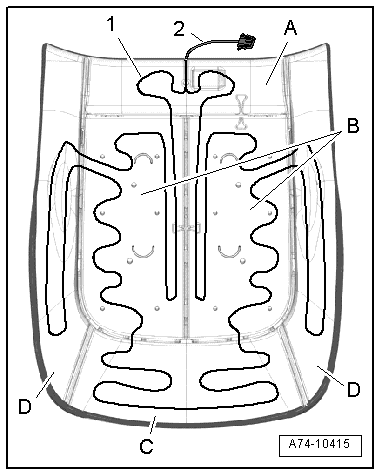

Standard Seat

-- Align the new heating elements on the seat cushion.

-- Remove protective films from the heating elements in succession, taking care not to damage the heating elements.

-- Bond heating elements in the sequence -B, C, D and A- so that they align with the old heating elements and are wrinkle free.

-- Route the connecting wires to the individual heating elements in the base of the gaps.

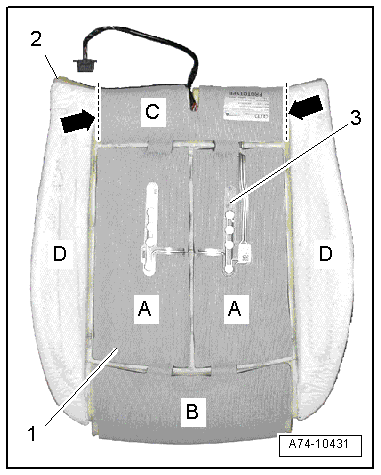

Vehicles with Seat Ventilation

Courtesy of AUDI OF AMERICA, LLC

-- Align the new heating elements on the seat cushion.

-- Remove protective films from the heating elements in succession, taking care not to damage the heating elements.

-- Glue the heating elements in the following sequence: -A through D-. Make sure there are no wrinkles.

-- Route the connecting wires to the individual heating elements in the base of the gaps.

Sport Seat/Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

-- Align the new heating elements on the seat cushion.

-- Remove protective films from the heating elements in succession, taking care not to damage the heating elements.

-- Bond heating elements so that they align with the old heating elements and are free of wrinkles.

-- Route the connecting wires to the individual heating elements in the base of the gaps.

Procedure for All Seat Versions

Install in reverse order of removal.
