Driver Backrest Heating Element -Z7- /Front Passenger Backrest Heating Element -Z9-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Separate the backrest cover and backrest cushion. Refer to BACKREST COVER AND CUSHION, SEPARATING .

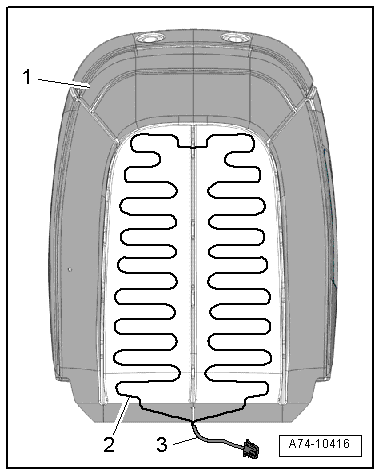

Standard Seat/Sport Seat
-- Cut the electric wire -3- directly from the old heating element -2-.
NOTE:
The old seat heating element remains on the backrest cushion -1- and the new seat heating element is bonded over it.
Vehicles with Seat Ventilation
-- Remove the heating elements -1- carefully from the glue.

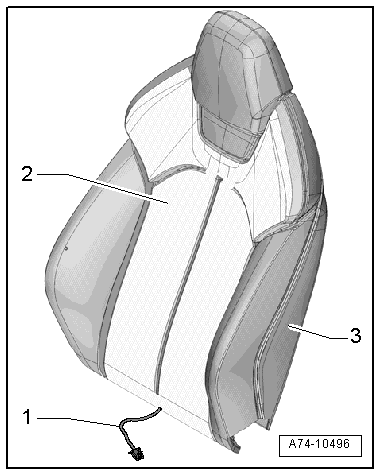

Super Sport Seat
-- Cut the electric wire -1- directly from the old heating element -2-.
NOTE:
The old seat heating element remains on the backrest cushion -3- and the new seat heating element is bonded over it.
