Multi-Contour Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

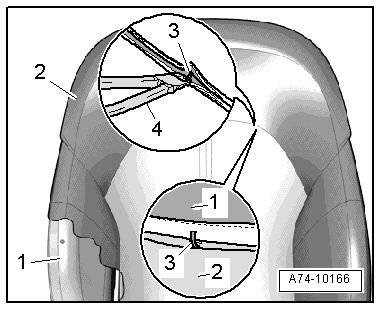

GWWA74-10166Courtesy of AUDI OF AMERICA, LLC

-- Pull off backrest cover -2- from the backrest padding -1- as far as possible and cut the upholstery clips -3- using pliers -4-.

-- Vehicles with backrest heating: disconnect the connector
