Backrest Cover And Padding, Removing And Installing, Standard/Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

-- Vehicles with rear seat entertainment: remove the mount for the rear seat entertainment. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING .

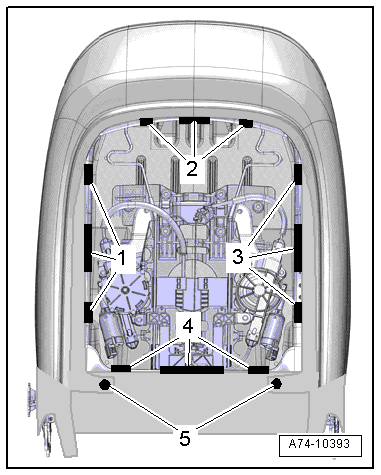

-- Unclip the backrest cover clips -5- from the backrest frame using the :80-200 .

Courtesy of AUDI OF AMERICA, LLC

-- Detach the rear moldings -1 through 4- from the backrest frame.

-- Vehicles with seat ventilation: disconnect the connectors from the fan.

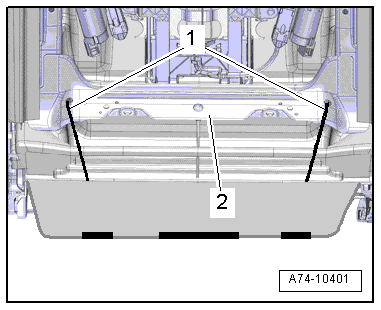

-- Remove the rear contour wire -1- from the backrest frame -2-.

Courtesy of AUDI OF AMERICA, LLC

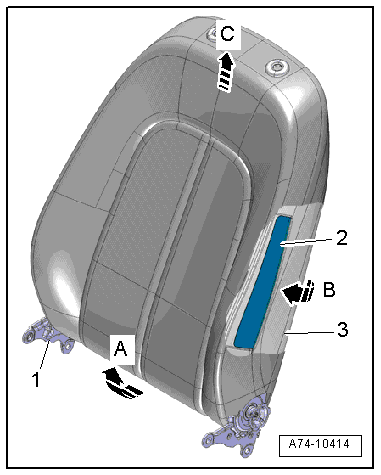

-- Remove the backrest cover with the lower backrest cushion forward from the backrest frame -1- in direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully remove the backrest cushion -3- near the side airbag from the cushion protection -2- in direction of -arrow B-.

-- Remove the backrest cover and backrest cushion upward -arrow C- and off the backrest frame while removing the backrest heating wiring harness and seat ventilation.
