Backrest Cover And Cushion, Removing And Installing, Super Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

-- Vehicles with rear seat entertainment: remove the mount for the rear seat entertainment. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING .

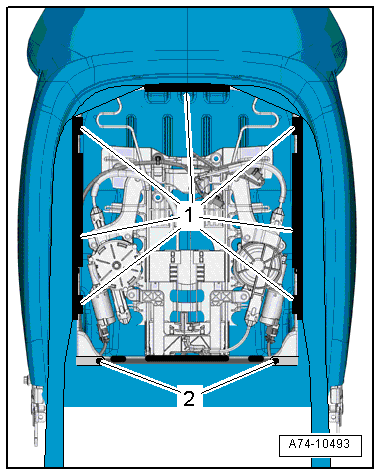

-- Unclip the backrest cover clips -2- from the backrest frame using the :80-200 .

Courtesy of AUDI OF AMERICA, LLC

-- Detach the rear moldings -1- from the backrest frame.

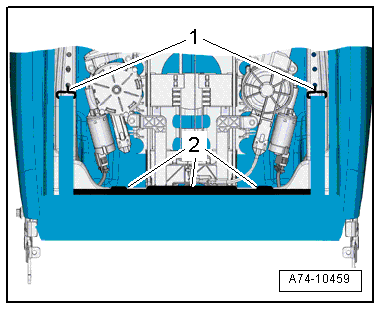

-- Detach the rubber strap -1- from the backrest frame.

Courtesy of AUDI OF AMERICA, LLC

-- Detach the rear molding -2- from the backrest frame.

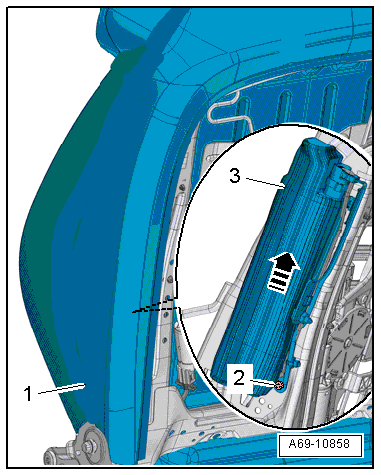

-- Carefully pull backrest cover as far forward as possible with backrest cushion -1- in the area of the side airbag.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Disengage the side airbag -3- from the backrest frame with the hook -arrow-.

-- Disengage the side airbag from the cushion protection and engage it again in the backrest frame.

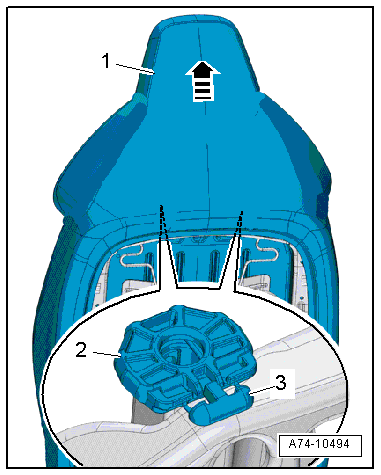

-- Reach under the backrest cushion from the back of the backrest and find the release button -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the release button for the headrest guide -2- and hold it.

-- With a second technician, pull the backrest cover and the backrest cushion -1- together with the headrest upward and off the backrest frame -arrow-.

-- Remove the backrest cover and backrest cushion upward and off the backrest frame while removing the backrest heating wiring harness.
