Backrest Cover And Cushion, Removing And Installing, Multi-Contour Seat Through 08/2012: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

WARNING:
  • Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136  . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Vehicles with rear seat entertainment: remove the mount for the rear seat entertainment. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, MARKET-SPECIFIC .

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Remove backrest blower fan. Refer to FRONT BACKREST FAN, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

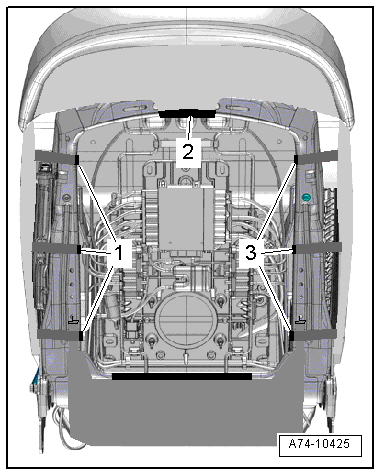

-- Detach the backrest cover molding -1, 2 and 3- from the backrest frame.

GWWA74-10425Courtesy of AUDI OF AMERICA, LLC

-- Detach hooks -2- and molding -3- of the backrest cover -1- at the backrest frame.

GWWA74-10163Courtesy of AUDI OF AMERICA, LLC

-- Disconnect and free up the connectors.

-- Remove the bolts -5-.

GWWA69-10633Courtesy of AUDI OF AMERICA, LLC

-- Disengage the side airbag -2- from the backrest frame -arrow- using the hook -4-.

-- Disengage the side airbag from the cushion protection -3- and engage it again in the backrest frame.

-- Disconnect the connector -3-.

GWWA72-11170Courtesy of AUDI OF AMERICA, LLC

-- Push massage mat valve block -4- up slightly to detach it at the module carrier -arrow A-.

-- Carefully release locking mechanism -arrow B-, disconnect pneumatic lines -1 and 2-.

-- Repeat the procedure on the opposite side of the backrest.

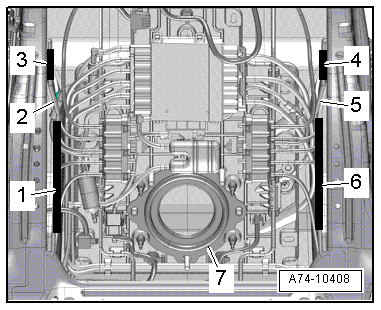

-- Detach the molding -1, 3, 4 and 6- from the padding wire -2-, -5-.

GWWA74-10408Courtesy of AUDI OF AMERICA, LLC

-- Free up the bracket -7- from the lumbar support module carrier.

-- Free up valve block with connected pneumatic lines on the backrest frame and remove backrest cover and backrest cushion.
