Backrest Cover And Cushion, Removing And Installing, Multi-Contour Seat From 09/2012: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

WARNING:
  • Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136  . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Vehicles with rear seat entertainment: remove the mount for the rear seat entertainment. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING .

-- Remove the backrest cover. Refer to FRONT BACKREST, REMOVING AND INSTALLING .

-- Remove backrest blower fan. Refer to FRONT BACKREST FAN, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

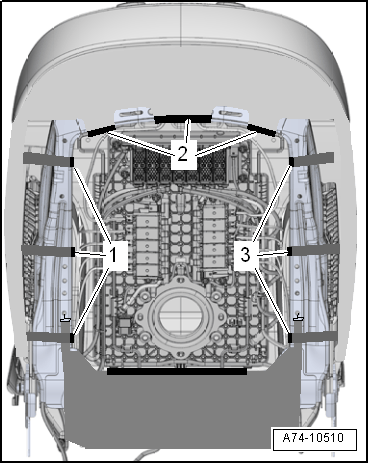

-- Detach the backrest cover molding -1, 2 and 3- from the backrest frame.

GWWA74-10510Courtesy of AUDI OF AMERICA, LLC

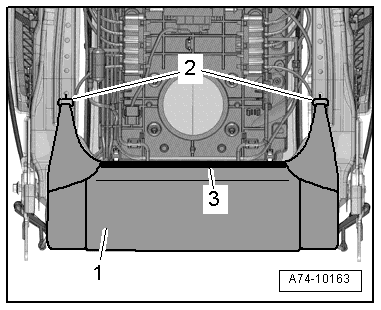

-- Detach hooks -2- and molding -3- of the backrest cover -1- at the backrest frame.

GWWA74-10163Courtesy of AUDI OF AMERICA, LLC

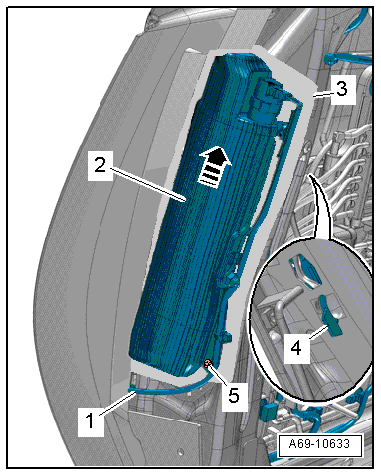

-- Disconnect and free up the connectors.

-- Remove the bolts -5-.

GWWA69-10633Courtesy of AUDI OF AMERICA, LLC

-- Disengage the side airbag -2- from the backrest frame -arrow- using the hook -4-.

-- Remove the side airbag from the bottom of the pocket sewn into the backrest cover.

-- Reinstall the side airbag in the frame.

-- Before disconnecting, mark the pneumatic line assignments to the connections at the valve block using a waterproof permanent marker.

GWWA72-11736Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the pneumatic lines -1 through 5- from all of the massage mat air cushions.

NOTE:

Ignore item -6-.

-- To do this, press the release ring -2- in the direction of the valve block -1- -arrow A- and at the same time pull out the pneumatic line -3- in direction of -arrow B-.

GWWA72-11630Courtesy of AUDI OF AMERICA, LLC

-- Free up the pneumatic lines from all of the massage mat air cushions.

-- Repeat the procedure on the opposite valve block.

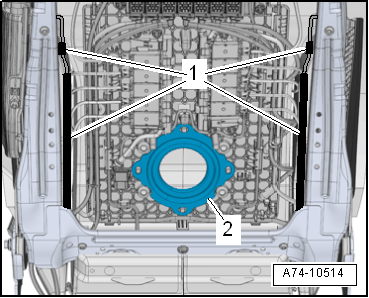

-- Remove the protective strip -1- from the cushion wire.

GWWA74-10514Courtesy of AUDI OF AMERICA, LLC

-- Free up the boot -2- from the lumbar support module carrier.

-- Remove the backrest cover and the backrest cushion.
