Left Rear Seat Blower Fan, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .
-- Remove the cover clip to remove the seat cover near the rear seat bench fan. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .

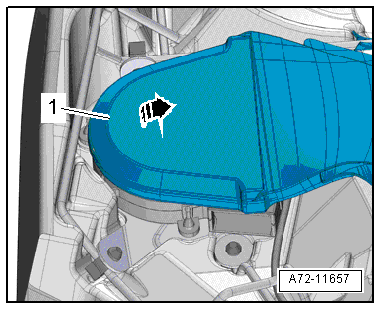

-- Remove the air guide mat connections -1- from the rear seat bench fan in direction of -arrow-.

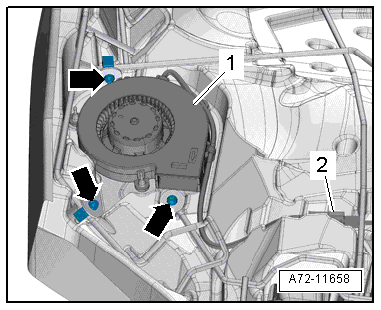

-- Disconnect the fan connector -2-.
-- Release the clips -arrows- and remove the rear seat bench fan -1- with the mount.
