Rear Seat Backrest, Removing And Installing, Multi-Contour Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Follow the additional safety precautions when working with the side airbag. Refer to ADDITIONAL THORAX AIRBAG SAFETY PRECAUTIONS .

-- Disconnect the battery Ground (GND) cable with the ignition turned on. Refer to BATTERY .

-- Remove the rear bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

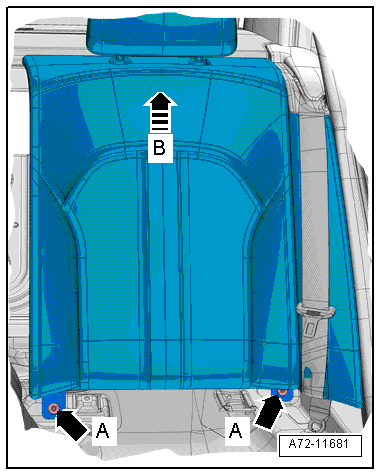

-- Remove the bolts -arrows A- for the rear seat backrest.

-- Press the rear seat backrest upward -arrow B-.

-- Remove the rear backrest frames -1- at the retaining bracket -2- from the rear panel.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the rear seat backrest as far forward as possible.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connector (yellow) from the rear side airbag.

-- Pull the locking mechanism -1- in direction of -arrow- and disconnect the electrical connectors -2 and 3-.

-- Connect :VAS6282 to the side airbag harness connector. Refer to AIRBAG ADAPTER, CONNECTING AND DISCONNECTING .

-- Disconnect the connector and remove the rear seat backrest from the vehicle.
