Rear Seat Backrest, Fixed, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

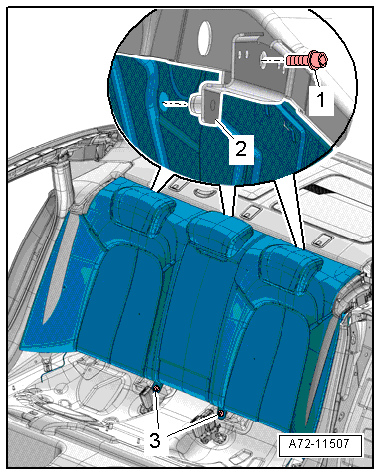

-- In the luggage compartment, remove the screw for the rear seat seatback -1-.
-- Remove the bolts -3-.
-- Vehicles equipped with backrest heating: disconnect the backrest heating harness connector.

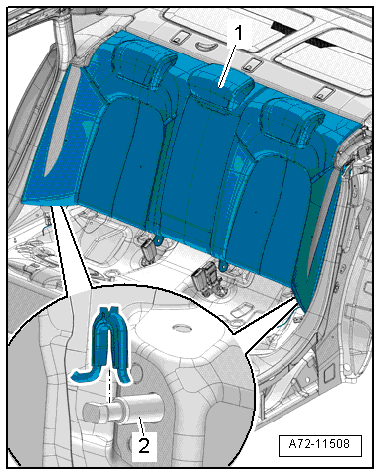

-- Pull the top part of the rear seat seatback from its mounts -2-.
-- Detach the rear seat seatback -1- moving it sideways and out of the retaining pins -2- ; then remove it from the vehicle.
