Rear Seat Backrest Fan, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the Multi-contour seat. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

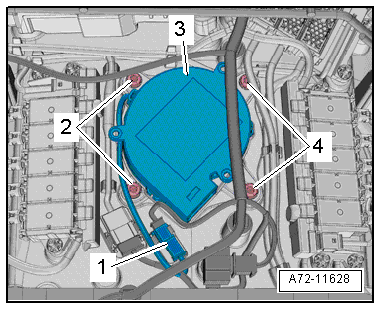

-- Disconnect the connectors -1- and free them up.

GWWA72-11628Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 4- for the fan.

-- Remove the fan -3-.
