Divided Rear Seat Backrest, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Vehicles with a 3-seat rear seat backrest, 2/3 right: Remove the center rear belt end fitting. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .

Vehicles with a 3-seat rear seat backrest, 2/3 right, market-specific with a rear seat belt igniter:

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .

-- Disconnect the battery Ground (GND) cable with the ignition turned on. Refer to BATTERY .

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connector.

-- Pull the locking mechanism -1- in direction of -arrow- and disconnect the electrical connectors -2- and -3-.

Vehicles with Backrest Release:

Courtesy of AUDI OF AMERICA, LLC

-- Open coupling rod cover -1-.

-- Unclip the release cable -4- at the coupling rod -2- for the release cable -arrow-.

-- Remove the release cable nipple -3-.

Continuation for All Vehicles

Courtesy of AUDI OF AMERICA, LLC

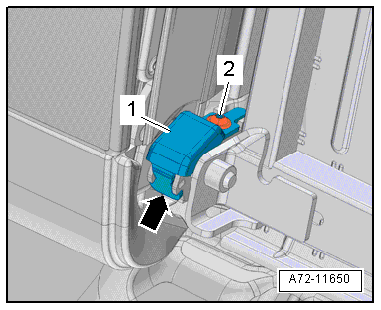

-- Fold the rear seat backrest forward.

-- Remove the securing bracket bolt -2-.

-- If the vehicle has a pass-through door, open the door and remove the securing bracket -1- from the center support -arrow-.

NOTE:

The cushion and cover are not shown in the illustration.

-- Lift the rear seat backrest -2- out of the center support -3- and pull it out toward the center of the vehicle out of its outer mounts -1- -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove rear seat backrest from the vehicle.
