Rear Seat Backrest Release, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment lamp. Refer to Luggage Compartment Lamp -W3-, REMOVING AND INSTALLING, AVANT .
-- Pull the release lever -1- (this will release the rear seat backrest) and keep it held.

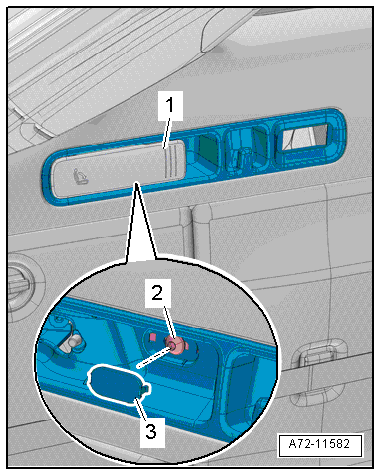

-- Remove the cap -3- with a screwdriver and remove the bolts -2- in the rear for the release.

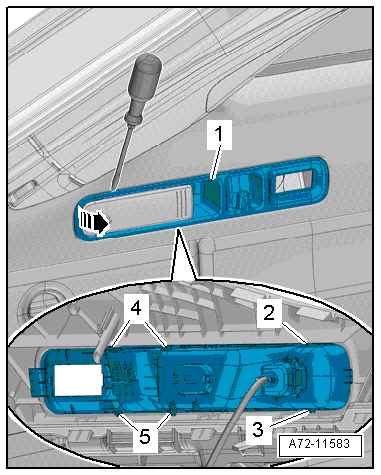

-- Remove the rear release -1- with the :3409 beginning from the luggage compartment side trim panel in direction of -arrow-.
-- To do this, release the tabs -2 to 5- with a screwdriver.

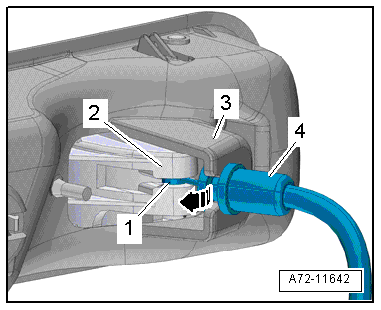

-- Unclip the release cable -4- at the release -3- for the backrest release in direction of -arrow-.
-- Remove the release cable nipple -1- on the release lever -2- and remove the release.
