Rear Seat Backrest Release Cable/Connector Station, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .
-- Remove the luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, AVANT .

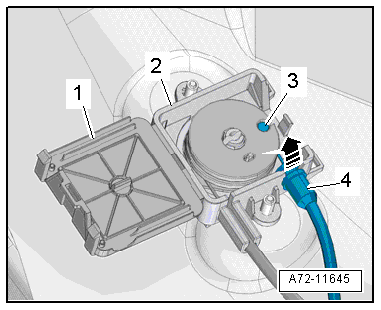

-- Open coupling rod cover -1-.
-- Unclip the release cable -4- at the coupling rod -2- for the release cable -arrow-.
-- Remove the release cable nipple -3-.
-- Remove coupling rod for the release cable on the vehicle underbody.

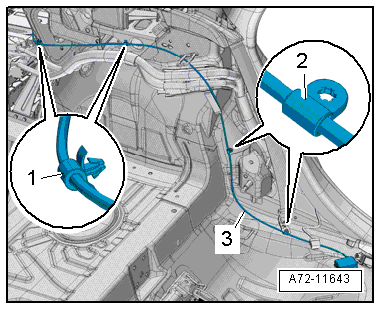

-- Unclip the brackets -1 and 2- for the release cable and remove the release cable -3- along with the coupling rod.
