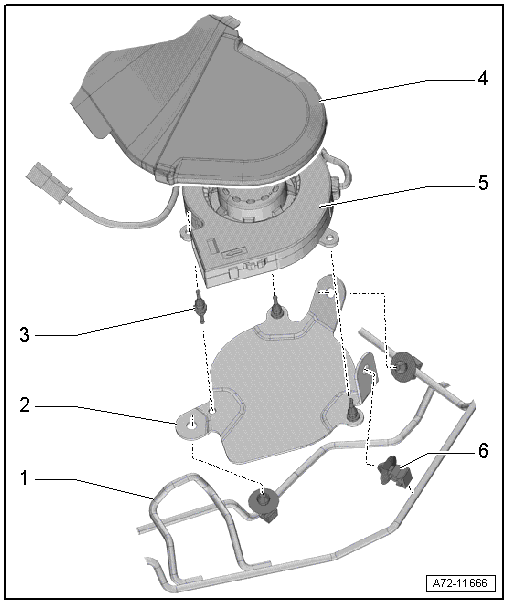

Overview - Seat Bench Fan/Single Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Frame
- for rear seat bench
- Bracket
- For blower fan
- Removing and installing. Refer to LEFT REAR SEAT BLOWER FAN, REMOVING AND INSTALLING .
- Rubber Buffer
- Fan mount
- Quantity: 3
- Air Guide Mat
- With the seat cushion glued on
- Right Rear Seat Blower Fan -V270- /Left Rear Seat Blower Fan -V271-
- Removing and installing. Refer to LEFT REAR SEAT BLOWER FAN, REMOVING AND INSTALLING .
- Allocation. Refer to the Parts information.
- Clip
- Quantity: 3
- Installed in the frame
