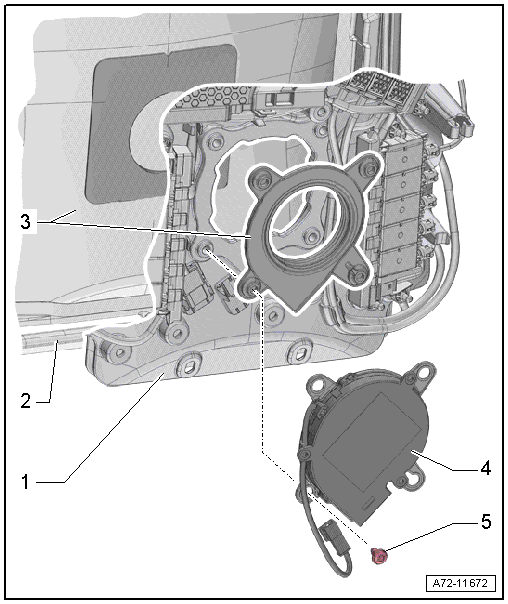

Overview - Seat Bench Fan/Single Seat, Multi-Contour Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Module Carrier With Air Cushions For Lumbar Support
- Cannot be disassembled
- Removing and installing. Refer to MODULE CARRIER, REMOVING AND INSTALLING .
- Backrest Padding
- Air Guide Mat
- Bonded with backrest padding
- Install the rubber boot in the module carrier
- Left Rear Seat Backrest Blower Fan -V273-
- Front passenger side: Right Rear Seat Backrest Blower Fan -V272-
- Removing and installing. Refer to REAR SEAT BACKREST FAN, REMOVING AND INSTALLING .
- Expanding Rivet
- Quantity: 4
