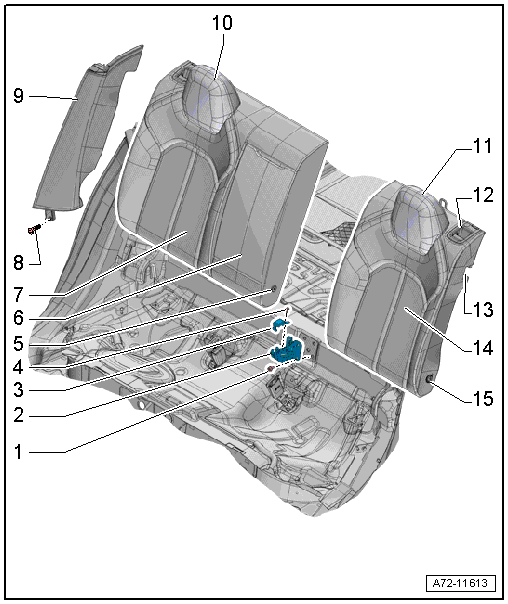

Overview - Rear Seat Backrest, Super Sport Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Screws
- 20 Nm
- Quantity: 4
- Center Support
- Removing and installing. Refer to MOUNT/SLEEVE/PINS, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Securing Bracket
- For the center bracket
- Removing and installing. Refer to DIVIDED REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Inner Mounting Pin
- 13.5 Nm
- For the rear seat backrest
- Quantity: 2
- Removing and installing. Refer to MOUNT/SLEEVE/PINS, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Rear Center Armrest
Vehicles with:
- With pass-through door
- With storage compartment
- Overview. Refer to OVERVIEW - CENTER ARMREST .
- Right 2/3 Rear Seat Backrest
Vehicles with:
- Backrest heater
- Pass-through
- Removing and installing. Refer to DIVIDED REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- For the correct tightening specification for vehicles with side airbags. Refer to OVERVIEW - REAR SIDE AIRBAG .
- Side Cushion
Vehicles with:
- Rear side airbag
- Removing and installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
- Engage in the seat belt guide at the top first
- Right Head Restraint
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING, SUPER SPORT SEAT .
- Left Head Restraint
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING, SUPER SPORT SEAT .
- Trim
- for locking
- Removing and installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Locking Mechanism
- For the rear seat backrest
- Removing and installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .
- Left 1/3 Rear Seat Backrest
- Removing and installing. Refer to DIVIDED REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Outer Bearing Sleeve
- Quantity: 2
- Removing and installing. Refer to MOUNT/SLEEVE/PINS, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Press on until it engages audibly
