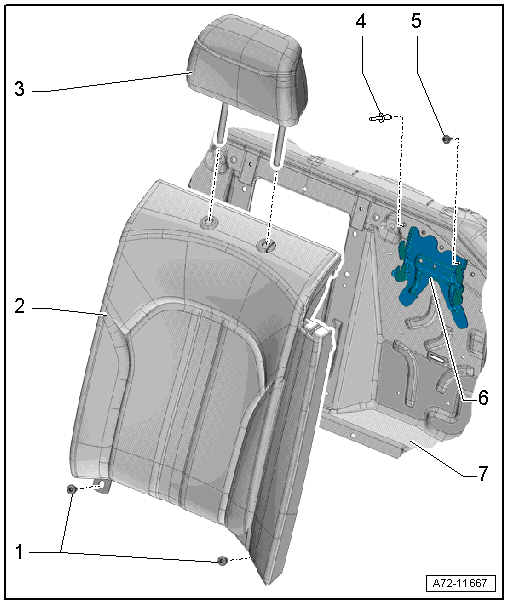

Overview - Rear Seat Backrest, Multi-Contour Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 45 Nm
- Multi-contour Seat
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
- Headrest
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
- Rivet
- Quantity 20
- Rivet using the Pop Rivet Pliers :VAG1753B
- Bolt
- 8 Nm
- Quantity: 2
- Retaining Bracket
- for the rear seat backrest
- Welded to the rear panel
- Rear Bulkhead
- Removing and installing. Refer to REAR SEAT BACKREST REAR PANEL/MOUNT, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
