Center Armrest Mount
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

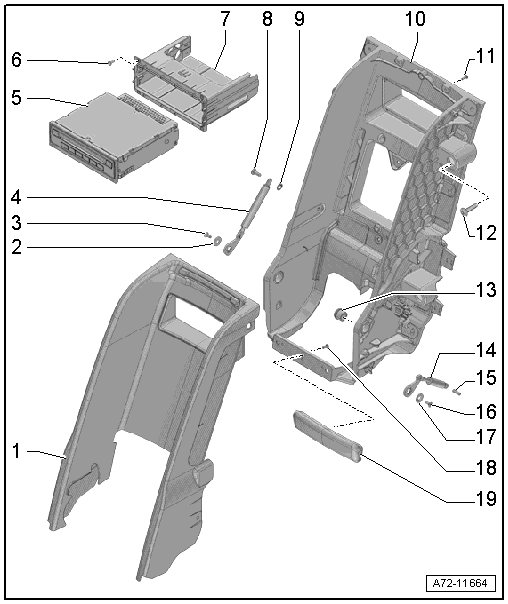

- Trim Panel
- For the lifting eye for the center armrest
- Removing and installing. Refer to CENTER ARMREST PRESSURE DAMPER/GAS-FILLED STRUT, REMOVING AND INSTALLING, MARKET-SPECIFIC .
- Press on until it engages audibly
- Washer
- Pay attention to the installation direction: the cone must face outward
- Bolt
- 4 Nm
- Large Gas-Filled Strut
- Removing and installing. Refer to CENTER ARMREST PRESSURE DAMPER/GAS-FILLED STRUT, REMOVING AND INSTALLING, MARKET-SPECIFIC .
- Information Electronics Control Module 2 -J829-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
- Bolt
- Quantity: 4
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
- Mount
- For the Information Electronics Control Module 2 -J829-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
- Retaining Pin
- Clip
- for the retaining pin
- Mount
- for the rear center armrest
- Removing and installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING, MARKET-SPECIFIC .
- Bolt
- 1.8 Nm
- Quantity: 6
- Bolt
- 8 Nm
- Quantity: 8
- Bushing
- Quantity: 2
- for the shaft
- Small Gas-Filled Strut
- Removing and installing. Refer to CENTER ARMREST PRESSURE DAMPER/GAS-FILLED STRUT, REMOVING AND INSTALLING, MARKET-SPECIFIC .
- Retaining Pin
- Bolt
- 4 Nm
- Washer
- Pay attention to the installation direction: the cone must face outward
- Bolt
- 1.8 Nm
- Quantity: 3
- Center Cushion
- For the rear center armrest
- Removing and installing. Refer to CENTER ARMREST CENTER CUSHION, REMOVING AND INSTALLING, MARKET-SPECIFIC .
- Install and press on it until it audibly latches
