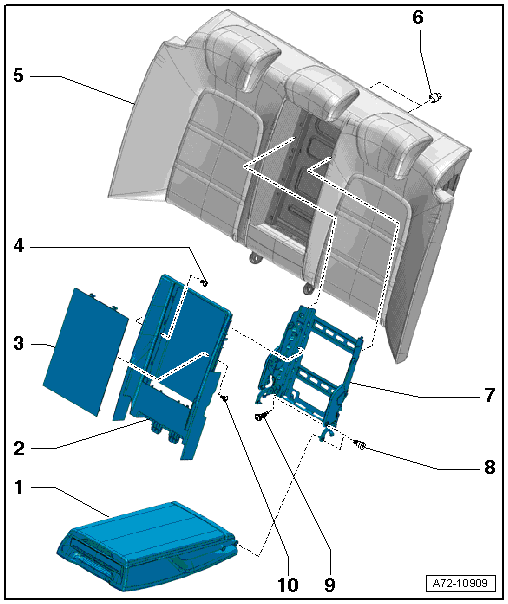

Overview - Center Armrest, Fixed Rear Seat Backrest
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Center Armrest
- Removing and installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
Versions with cupholder:
- Cupholder, removing and installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Removing and installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
- Trim Panel
- For the center armrest
- Removing and installing. Refer to CENTER ARMREST BRACKET/HINGE, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Trim
- For the center armrest
- Removing and installing. Refer to CENTER ARMREST BRACKET/HINGE, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Bolt
- 4 Nm
- Quantity: 2
- Fixed Rear Seat Backrest
- Equipment levels
- Nut
- 5 Nm
- Quantity: 2
- Tighten evenly alternating from side to side
- Bracket
- With hinges
- Removing and installing. Refer to CENTER ARMREST BRACKET/HINGE, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Bolt
- 11 Nm
- Quantity: 4
- Self-locking
- Always replace if removed
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 0.9 Nm
