Headrest, Removing And Installing, Super Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

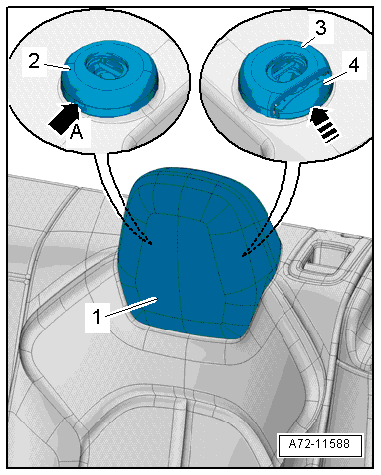

GWWA72-11588Courtesy of AUDI OF AMERICA, LLC

-- Insert a small flat blade screwdriver into the opening -arrow A- in the headrest guide -2- and push the spring all the way and at the same time pull the right side of the headrest out of the retainer.

-- Be careful so the headrest does not lock again on the loose side.

-- Press the release button -4- on the headrest guide -3- in direction of -arrow-.

-- At the same time, remove the headrest -1- from the rear seat backrest.
