Roof Trim: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Apply the roof cord and feeder cord along the mark-off line of the roof trim.
Tape:

Item number: 86359SC000/TAPE

NOTE: Use the tape (service parts) by cutting into 80 mm x 50 mm (3.2 in x 2.0 in).

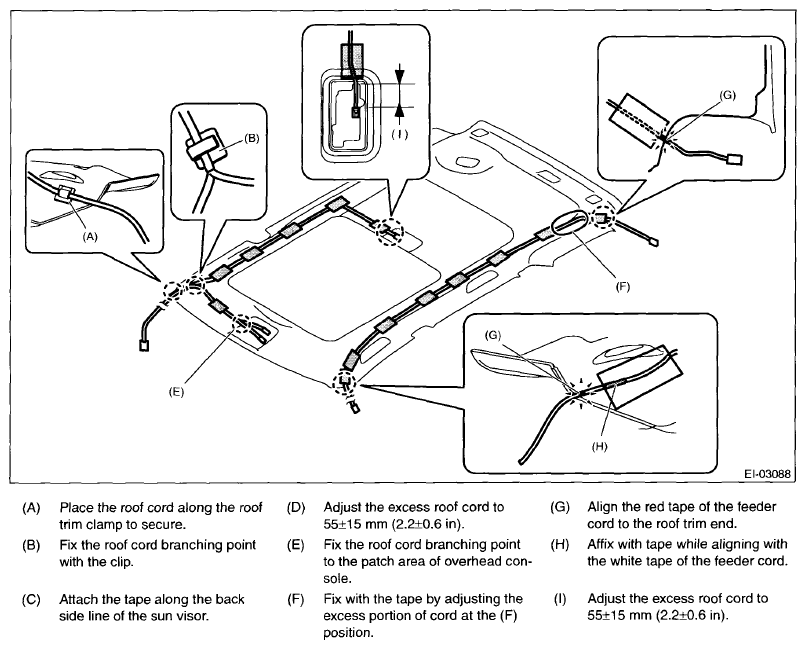

Fig 1: Applying Roof Cord And Feeder Cord Along Mark-Off Line Of Roof Trim (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Applying Roof Cord And Feeder Cord Along Mark-Off Line Of Roof Trim (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Install each part in the reverse order of removal.
