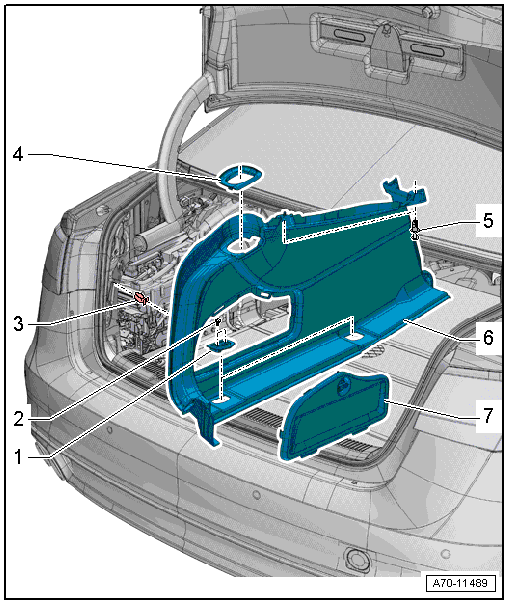

Overview - Luggage Compartment Side Trim Panel, Sedan
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Tie Down
- Quantity: 2
- Removing and installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
- Quantity: 4
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
- Frame
- For the rear lid hinge
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Expanding Clip
- Quantity: 2
- Remove using the Pliers :T40172C
- Luggage Compartment Side Trim Panel
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Cap
- For the luggage compartment side trim
