Rear Three Point Seat Belt In Rear Shelf, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the fixed rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- For vehicles with a Multi-contour seat: remove the Multi-contour seat. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Remove the center rear belt end fitting. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

Versions with Rear Seat Belt Tensioner Igniter

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .

-- Turn on the ignition.

-- Disconnect the battery GND cable with the ignition turned on. Refer to BATTERY .

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connector.

Courtesy of AUDI OF AMERICA, LLC

-- To do this, release the connector lock -3- using a small screwdriver -1- and remove the electrical connector -2-.

Continuation for All Vehicles

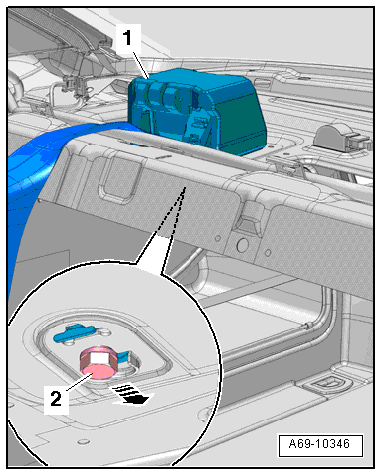

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -2-.

-- Disengage the three-point seat belt -1- -arrow- and remove it upward.
