Outer Rear Three-Point Seat Belt, Removing And Installing, Sedan: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear outer belt end fitting. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Remove the luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear seat belt guides. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, SEDAN .

-- Remove the noise insulation for the automatic belt retractor.

Versions with Rear Seat Belt Tensioner Igniter

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .

-- Disconnect the battery Ground (GND) cable with the ignition turned on. Refer to BATTERY .

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connector.

Courtesy of AUDI OF AMERICA, LLC

-- Release the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.

Continuation for All Vehicles

Courtesy of AUDI OF AMERICA, LLC

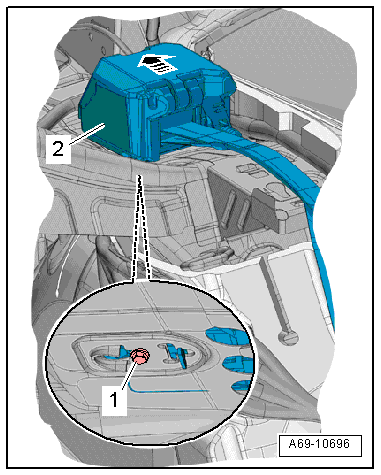

-- Remove the bolt -1-.

-- Push the three-point seat belt -2- toward the rear in direction of -arrow- and remove it from the mount.
