Rear Seat Belt Guide, Removing And Installing, AVANT: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, AVANT .
-- Remove the foam piece from the opening under the belt guide.
CAUTION:

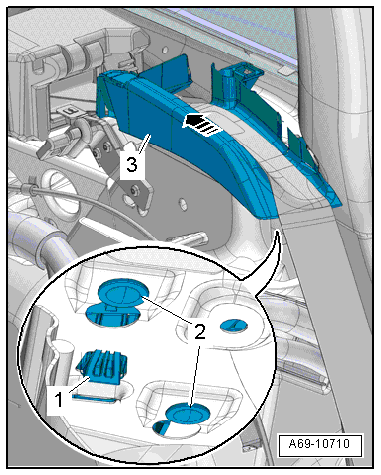

- Do not rotate bolts -2- under any circumstances when removing and installing belt guide -3-. They are set by the manufacturer.
- Replace the entire seat belt guide if damaged.
-- Press the seat belt guide hooks -1- upward with a screwdriver and keep them pressed.
-- Slide the seat belt guide -arrow- toward the rear until the bolt heads -2- can be disengaged from the bracket on the body.
-- Remove the seat belt guide sideways from the vehicle interior.
-- Rear outer right seat belt guide: Disconnect the connector from the Rear Parking Aid Warning Buzzer -H15-.
-- Thread the seat belt webbing out and remove the seat belt guide.
