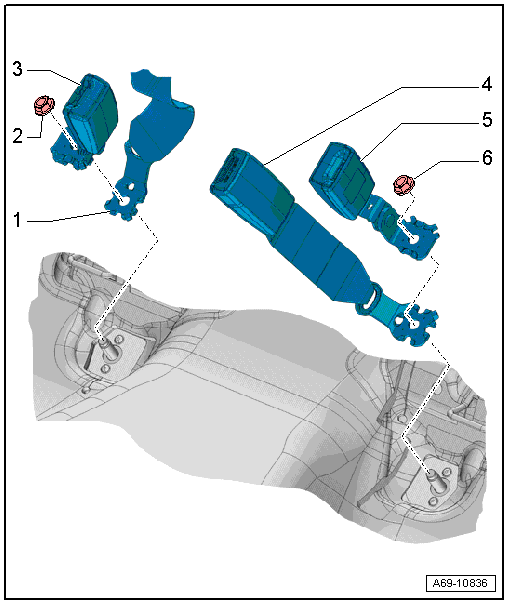

Overview - Rear Seat Belt Latch, 3-Person Rear Seat, Market-Specific
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Center Rear Belt End Fitting
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- The tabs on the floor panel must be between the recesses on the bolting surface of the seat belt latch.
- Nut
- 45 Nm
- Replace
- Seat Belt Latch
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Align with the direction of travel when bolting it on
- The tabs on the floor panel must be between the recesses on the bolting surface of the seat belt latch.
- Rear Center Belt Latch
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Align with the direction of travel when bolting it on
- The tabs on the floor panel must be between the recesses on the bolting surface of the seat belt latch.
- Seat Belt Latch
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Align with the direction of travel when bolting it on
- The tabs on the floor panel must be between the recesses on the bolting surface of the seat belt latch.
- Nut
- 45 Nm
- Replace
