Overview - Rear Seat Belt Latch, 2-Person Rear Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

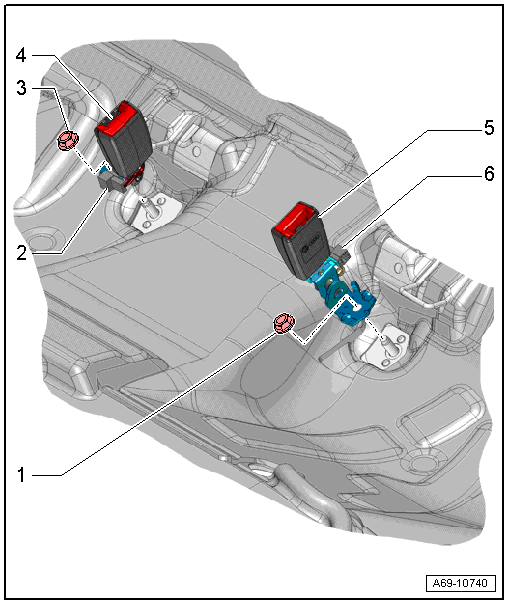

Fig 1: Rear Seat Belt Latch, 2-Person Rear Seat Exploded View
GWWA69-10740Courtesy of AUDI OF AMERICA, LLC
  1. Nut
    • 45 Nm
    • Replace
  2. Connector
    • For Passenger Side Rear Seat Belt Switch -E259-
  3. Nut
    • 45 Nm
    • Replace
  4. Seat Belt Latch with Passenger Side Rear Seat Belt Switch -E259-
    • Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
    • Align with the direction of travel when bolting it on
    • The tabs on the floor panel must be between the recesses on the bolting surface of the seat belt latch.
    • Always replace the seat belt latch if the belt tensioner has deployed with the belt on
  5. Seat Belt Latch with Driver Side Rear Seat Belt Switch -E258-
    • Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
    • Align with the direction of travel when bolting it on
    • The tabs on the floor panel must be between the recesses on the bolting surface of the seat belt latch.
    • Always replace the seat belt latch if the belt tensioner has deployed with the belt on
  6. Connector
    • For the Driver Side Rear Seat Belt Switch -E258-
