Overview - Rear Outer Three-Point Seat Belt
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

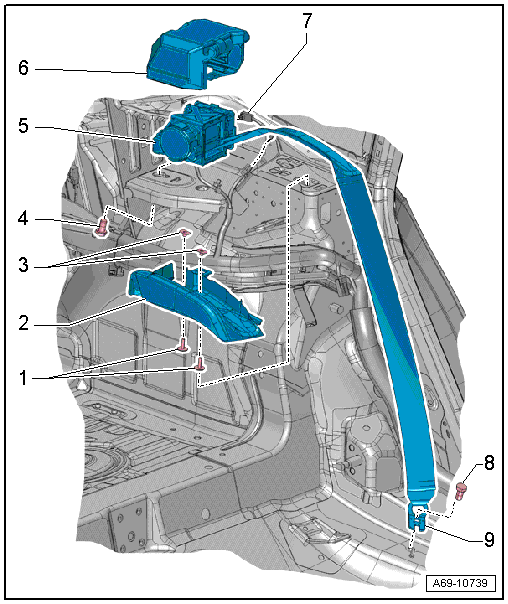

The illustration shows a three-point seat belt in a sedan.
- Bolts
- Do not change the bolt position when removing and installing the belt guide. It is set by the manufacturer.
- Belt Guide
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Nut
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Automatic Belt Retractor
- Driver side: market-specific with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Front passenger side: market-specific with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Removing and installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Noise Insulation
- For the automatic belt retractor
- Connector
- Driver side: for vehicles with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Front passenger side: for vehicles with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Rear Belt Anchor
- Removing and installing. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
