Overview - Rear Center Three-Point Seat Belt
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

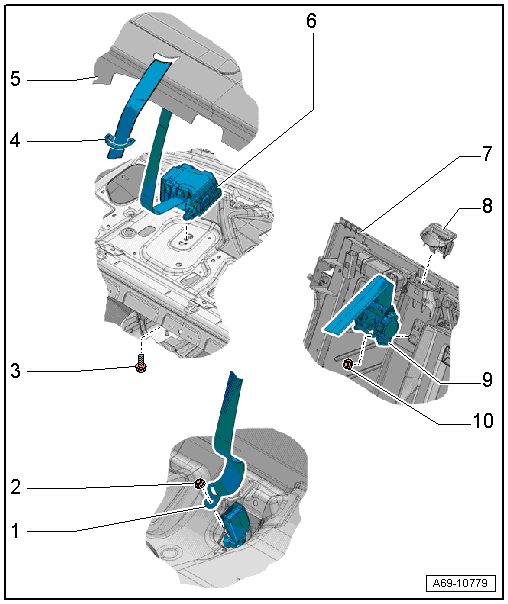

Both folding and fixed rear seat backrests are shown in the illustrations.
- Center Rear Belt End Fitting
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Nut
- Tightening specification. Refer to OVERVIEW - REAR SEAT BELT LATCH .
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Rear Center Belt Guide
- For versions equipped with a fixed rear seat backrest
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Rear Shelf
- Automatic Belt Retractor
- For versions equipped with a fixed rear seat backrest
- Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-
- Removing and installing. Refer to REAR THREE POINT SEAT BELT IN REAR SHELF, REMOVING AND INSTALLING .
- Right 2/3 Split Rear Seat Backrest
- Rear Center Belt Guide
- For vehicles equipped with a folding rear seat backrest
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Automatic Belt Retractor
- For vehicles equipped with a folding rear seat backrest
- Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-
- Removing and installing. Refer to REAR THREE POINT SEAT BELT IN REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Nut
- 45 Nm
- If it was removed because of an accident, replace the nut
