Overview - Front Three-Point Seat Belt

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

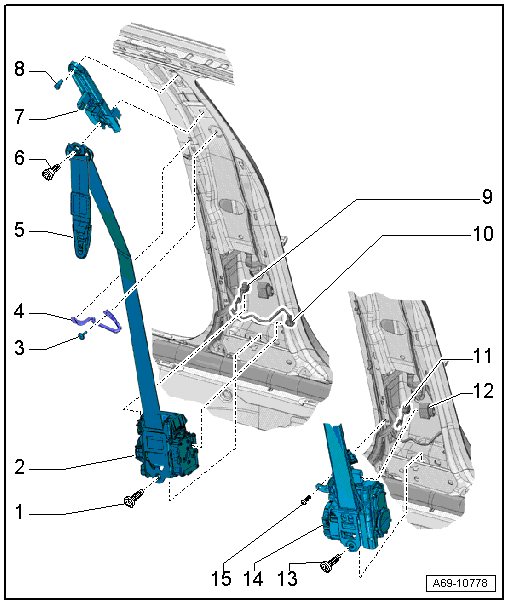

Fig 1: Front Three-Point Seat Belt Exploded View
GWWA69-10778Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 45 Nm
    • If it was removed because of an accident, replace the bolt
  2. Automatic Belt Retractor
    • Drivers side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Driver Belt Force Limiter -G551-
    • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Front Passenger Belt Force Limiter -G552-
    • Vehicles without an electric seat belt tensioner
    • Removing and installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
  3. Bolt
    • 5 Nm
    • If it was removed because of an accident, replace the bolt
    • Install with locking compound. For the correct locking compound. Refer to the Parts information.
  4. Front Seat Belt Guide
  5. Front Belt End Fitting
  6. Bolt
    • 45 Nm
    • If it was removed because of an accident, replace the bolt
  7. Seat Belt Height Adjuster
  8. Bolt
    • 27 Nm
    • If it was removed because of an accident, replace the bolt
  9. Connector
    • Driver side: for the Driver Belt Force Limiter -G551-
    • Front passenger side: for Front Passenger Belt Force Limiter -G552-
    • Vehicles without an electric seat belt tensioner
    • For disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
  10. Connector
    • Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
    • Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
    • Vehicles without an electric seat belt tensioner
    • For disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
  11. Connector
    • Drivers side: for Driver Seat Belt Tensioner Igniter 1 -N153- and Driver Belt Force Limiter -G551-
    • Front passenger side for Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Front Passenger Belt Force Limiter -G552-
    • Vehicles with an electric seat belt tensioner
    • For disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
  12. Connector
    • Driver side: for Left Front Seat Belt Tensioner Control Module -J854-
    • For Right Front Seat Belt Tensioner Control Module -J855-
    • Vehicles with an electric seat belt tensioner
    • For disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
  13. Bolt
    • 45 Nm
    • If it was removed because of an accident, replace the bolt
  14. Automatic Belt Retractor
    • Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153-, Left Front Seat Belt Tensioner Control Module -J854- and Driver Belt Force Limiter -G551-
    • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154-, Right Front Seat Belt Tensioner Control Module -J855- and Front Passenger Belt Force Limiter -G552-
    • Vehicles with an electric seat belt tensioner
    • Removing and installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
  15. Bolt
    • 2 Nm
    • Only for vehicles with an electric seat belt tensioner
