Overview - Front Seat Belt Latch, Multi-Contour Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

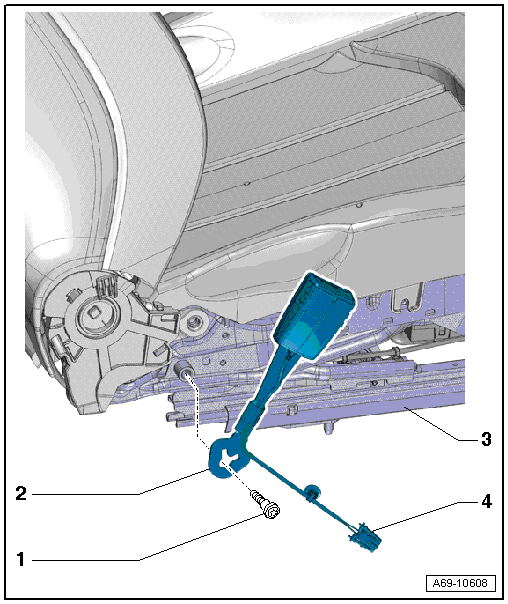

Fig 1: Front Seat Belt Latch, Multi-Contour Seat Exploded View
GWWA69-10608Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 33 Nm
    • If it was removed because of an accident, replace the bolt
  2. Front Seat Belt Latch with Driver Seat Belt Switch -E24-
    • Front passenger side front seat belt latch with Front Passenger Seat Belt Switch -E25-
    • Front passenger side, market-specific: with Front Passenger Seat Belt Switch -E25- and Passenger Occupant Detection System Seat Belt Force Sensor -G453-
    • Removing and installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
    • Always replaced if the belt tensioner has deployed with the belt on
  3. Seat Frame
  4. Connector
    • For the seat belt switch
