Front Three-Point Seat Belt, Removing And Installing: Removing
- Follow all safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY .
-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
-- Remove the upper trim from the B-pillar and guide the seat belt out. Refer to UPPER B-PILLAR TRIM, REMOVING AND INSTALLING .
-- Remove the B-pillar lower trim panel. Refer to LOWER B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the B-pillar air guide. Refer to B-PILLAR AIR GUIDE, REMOVING AND INSTALLING [For engine(s) CTUA, CAED, CREH, CEUC, CTGE, CREC, CYNB, CPNB] .
Before handling belt tensioner units (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

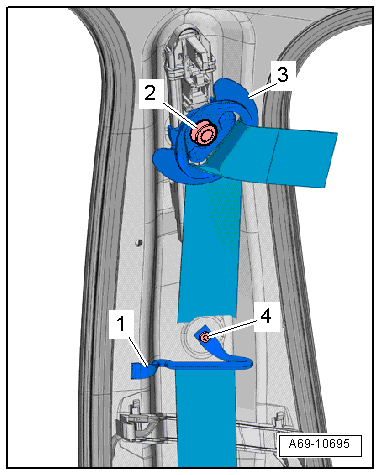

-- Remove bolt -4- and front belt guide -1-.
-- Remove bolt -2- for the seat belt pulley -3-.

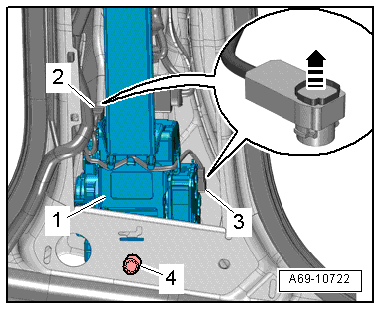

Vehicles without an Electric Seat Belt Tensioner:
-- Unlock the connector lock with a small screwdriver -arrow- and disconnect the connectors from the seat belt force limiter -2- and from seat belt tensioner igniter 1 -3-.
-- Disconnect and free up the wire on the belt tensioner.
-- Remove the bolt -4- and the automatic belt retractor -1- from the mount.

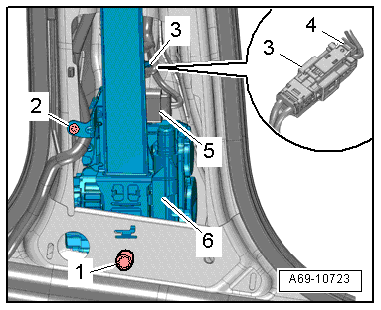

Vehicles with an Electric Seat Belt Tensioner:
-- Disconnect the connector -5- from the seat belt tensioner control module.
-- Pull the connector lock -4- out and push it down, then disconnect the connector -3- from the seat belt tensioner igniter and seat belt force limiter.
-- Remove the bolts -1- and -2- and then remove the automatic belt retractor -6- from the mount.
